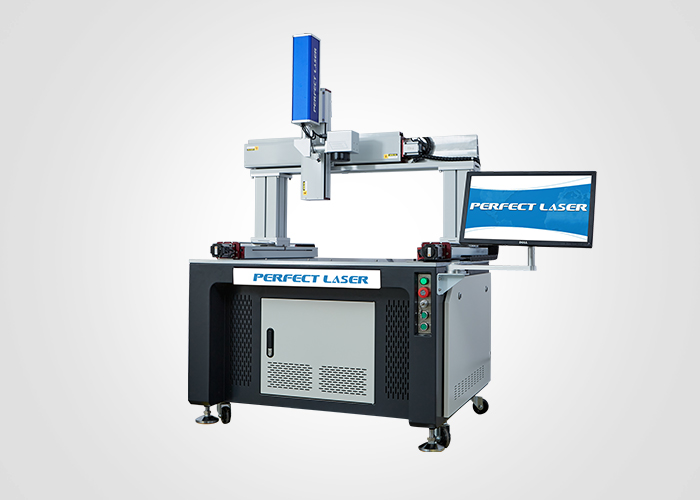

Large Format Seamless Splicing Gantry Fiber Laser Marking System
(Model: PEDB-700)
Introduction Of Fiber Laser Marking System
This laser marking machine is designed by PERFECT LASER for large-scale continuous marking. laser part marking machines uses German advanced technology to develop this new type of large-scale seamless stitching laser marking and engraving machine. The lens and marking head adopt advanced aluminum structure, which has good stability and stable movement during marking, and the effect is good. This fiber laser marking machine not only has great advantages in terms of marking range and accuracy. The lifespan of fiber laser source life can reach 100,000 hours. Consumable-free, maintenance-free, low power consumption, only 0.5kw / hour, so this is a very cost-effective laser marking machine. At the same time, we provide installation and operation training videos, which is very easy for you to install and operate.
Features Of Fiber Laser Marking System
1. The marking format is up to 300x400mm, suitable for marking large workpieces, nameplates, product logos, etc.
2. The laser beam is small, and the marking effect is excellent; this laser marking machine is especially suitable for large-size seamless stitching image marking.
3. The marking depth can reach 0.5mm (depending on the material).The accuracy of this fiber laser marking machine can reach 0.001mm.
4.10 years long service time of the whole laser marking machine and 100,000 hours lifespan of fiber laser source.
5. There is no need to adjust the laser path, the optical system has been debugged before delivery, and it is a closed optical path structure that does not require subsequent adjustments.
Application Of Fiber Laser Marking System
Suitable for some large pairs of workpieces with high marking accuracy, such as billboards, automotive parts or large splicing decorations.
Specifications Of Fiber Laser Marking System
| Model NO | PEDB-700 Fiber Laser Marking System |
| Type | 10W | 20W | 30W | 50W |
| Marking Speed | ≤7000mm/s |
| Marking Size(can be customized) | 300*400mm |
| Minimum character height | 0.2mm |
| Marking repeatability | ＜24 μrad |
| Marking depth | 0.5mm(depending on the machine) |
| Minimum line width | 0.06mm(depending on the machine) |
| Source | AC 220V 50KHz |
| X-axis displacement (can be customized) | 120*300mm |
| Y-axis displacement (can be customized) | 120*400mm |
| Z-axis displacement (can be customized) | 120*500mm |
| Motor | Stepper motor / servo motor (optional) |
| Displacement positioning accuracy | 0.05mm/0.02mm |
| Displacement repeat positioning accuracy | 0.02mm/0.01mm |
| Displacement speed | 100mm/s--300mm/s |
Sample Show Of Fiber Laser Marking System
Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
