1600*1000 Large Format USB Port co2 laser cutting machine for Auto car Seat Cover
★ Product Introduction:
Perfect Laser is a world leading manufacturer for carpet cutters.
This carpet cutters is specially designed for carpet cutting and related auto-car interior decoration materials. The carpet cutters can do cutting process for various kinds of car interior decoration materials like leather, fabric, cotton, plastic, rubber items, etc.
★ Features:
1. Configure high power and quality laser tube,the lifetime can upto 8000 hours.
2. U flash Disk Supported: Read files directly from U-flash disk, you can work even without PC!
3. Red Dot Pointer: Provides a visible means of determing engraving location.
4.Air Assist: Remove heat and combustible gases from the cutting surface.
5. Transmit files directly from Corel draw and Auto CAD, Photoshop directly.
6. Front and back both sides open allow large pieces be put in and engrave.
★ Application:
Applicable Fields:
Laser Engraving Machine has been widely used in the fields of advertising and garment, applied in engraving & cutting on all kinds of nonmetal materials, such as acrylic, wood, plexiglass, architectural models, rubber plates, bamboo products, cloth, fabric.
★ Technical Parameters:
| Model | PEDK-160100S One head | PEDK-160100S(II) Double head | PEDK-160260S One head | PEDK-160260S(II) Double Head |
| Processing table size | 1600mm*1000mm | 1600mm*1000mm | 1600mm*2600mm | 1600mm*2600mm |
| Equip Rolling and Automatic Feeding System |
| Laser model | Sealed CO2 laser tube |
| Processing table | Caterpillar work platform |
| Laser power | 150w (optional 100w 130w) |
| Machine power | 3KW |
| Cutting Speed | 0-72000MM/Min |
| Interface port | USB ports |
| Cutting thickness | 0.3-20mm |
| Work humidity | 5-95% No Condensation |
| Controlling Mode | CNC Professional Control System |
| Cooling Mode | Water Cooling and Protect System |
| Working Voltage | AC220V±10% 50HZ |
| Assist Equipment | CW-5000 Water Chiller with temperature protection function, turbine dust exhaust, oil-water separator, silent air compressor |
| Power Controlling Mode | Laser Energy Combining Movement Control System |
| Control Software | Original Perfect Laser’s Engraving & Cutting Software |
| Support Graphics Formats | BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, DXF Compatible HPG Order To Support DXF, WMF, BMP, DXT |

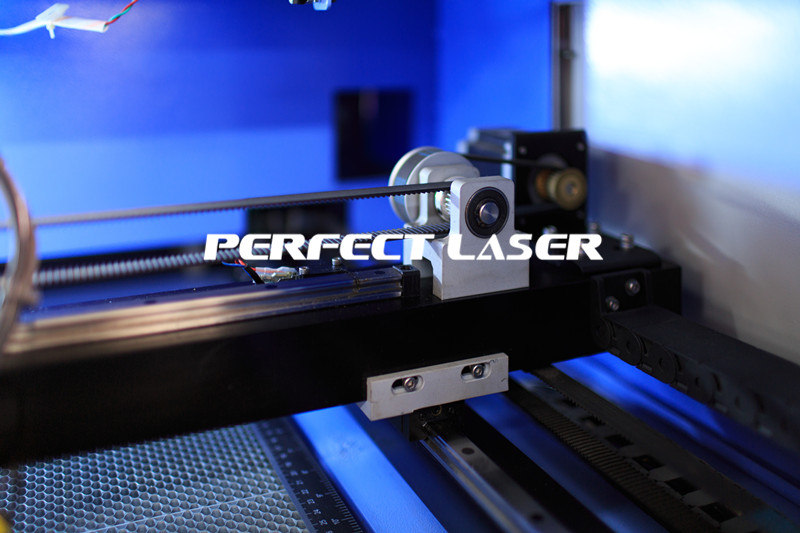

★ Machine Parts:
★ Packaging & Delivery:
